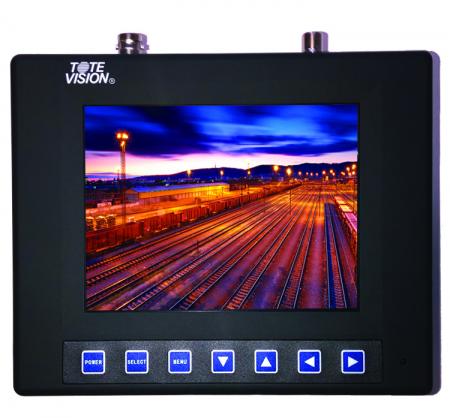

LED-502V

5” LCD Field Monitor

Product Description

This LED-backlit LCD monitor with audio is used primarily for testing and monitoring video and displaying data in the field.

  • LED backlight provides longer life, uses less power and provides better color saturation
  • BNC and RCA Input jacks located on top for easy access
  • Durable ABS plastic housing with rubberized coating prevents fingerprints
  • Two Composite Inputs and One PC (VGA) Input
  • Auto On with power capability
  • Mirror image capability
  • Audio Input, Output, and built-in speaker
  • On-board memory retains last input source when power is Off
  • AC adapter is included
  • Excellent electromagnetic shielding
  • Snap-on battery back is included and provides 6 hours of operation (batteries not included)
  • Low power consumption
  • Kit version is available which includes monitor, tote bag, and additional AC adaptor

Additional Information

Mount

Free-standing, 1/4-20 pad top and bottom

Display

5″ TFT LCD

Resolution

640 x 480 (displays up to 1080i/p)

Native Aspect Ratio

4:3

Visible Screen Size

4” x 3” / 101.57 x 76.18mm

Back Light

LED (15K)

HD Compatible

Yes

Anti Glare Coating

Yes

Brightness

250 cd/m² (Nit)

Contrast

500:1

Dot Pitch

0.053mm x 0.159mm

Response Time

10/15ms (Rising/Falling)

Viewing Angle

70/70/50/70 degrees

PC Compatible

Yes

Audio Power / Speakers

2 watts

HDMI

x1 Input

Composite

x1 BNC Input; 1x RCA Input

VGA

x1 8-pin mini Din Input

Audio

x1 3.5mm Input with RCA to 3.5mm cable; x1 3.5mm Output

Power

x1 2.1mm DC Input (AC adapter is included)

Operating Temp

-4 ~ 140°F / -20 ~ 60°C

Humidity

20% ~ 80% RH

Power Requirements

6 ~ 24V, <10mA; Includes AC Adapter: 11VDC ~ 14VDC, 500mA, +pin, - ground

Power Consumption

1.2 watts (max)

Dimension with Deskstand

6.2” x 5.1” x 2.2” / 158 x 130 x 55mm with battery pack

Dimensions

6.2” x 5.1” x 1.7” / 158 x 130 x 42mm without battery pack

Product Weight

Net: 14 oz / 400g; Gross: 1.6 lbs / 0.7 kg

Case

Rubberized durable ABS Plastic

Additional Information

Electromagnetic Shielding
Auto Power On function
Mirror Image function
Automatic Signal Resolution Scaling
Auto-sensing NTSC/PAL
